Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
  • Linux IPTV Set Top Box with HLS UDP RTMP Remote Update
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update

Linux IPTV Set Top Box with HLS UDP RTMP Remote Update

Place of Origin Guangdong, China
Λεπτομέρειες προϊόντων
Operating System:
Linux
Processor Core:
Dual Core
Processor:
GX67
Supported Resolution:
1920 x 1080
Ethernet Speed:
10/100MBps
WiFi Standard:
802.11n 2.4GHz
CPU Frequency:
1500DMIPS 32bit
Flash Memory:
16MB
DDR3 Memory:
128MB
Video Decoder:
HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1
Video Output:
CVBS*1, HDMI1.4
Audio Decoder:
MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
USB Ports:
1 x USB2.0
Power Adapter:
12V 1A
LAN Port:
10M/100M Ethernet/RJ-45
Επισημαίνω:

Linux IPTV box with remote update

,

HLS UDP RTMP set top box

,

IPTV set top box with warranty

Περιγραφή προϊόντων
Linux IPTV Set Top Box with Custom Software
Product Specifications
Brand ERI
Operating System Linux
Processor Core Dual Core
Processor GX67
Supported Resolution 1920 x 1080
Ethernet 1 x 10/100MBps
WiFi 802.11n 2.4GHz
Private Mold Yes
Software Customized
Server Support Remote Update Automatically
Protocol UDP/HLS/RTP/RTMP etc.
CEC Function Support
Software Update Net Update and USB Update
Power Adapter US/EU/UK etc.
Application Youtube, Xtream, Stalkerx, Customized
OEM/ODM Support
Product Images
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 0
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 1
Technical Specifications
CPU
  • Main Chip: GX67
  • Operating System: Linux
  • CPU Frequency: 1500DMIPS 32bit
  • Flash: 16MB
  • DDR3: 128MB
System
  • IPTV protocol: HLS(M3U8), UDP, RTP, RTSP, RTMP, HTTP
  • Content Protection: HDCP, Macrovision 7.1, CGMS-A
  • DRM: NSTV
Video Decoder
  • Video Decoder: HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1
  • Video Output: CVBS*1, HDMI1.4
  • Video Format: PAL/NTSC
  • Aspect Ratio: 4:3/16:9
  • Resolution: 1080p, 1080i, 720p, 576p, 480p, etc
Audio Decoder
  • Audio Decoder: MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
  • Audio Mode: Left/Right/Stereo
  • Sampling Frequency: 32KHz, 44.1KHz, 48KHz
Front Panel
  • LED Indicator: Dual Color LED (Green for working, Red for Standby)
  • IR Sensor: 38KHz

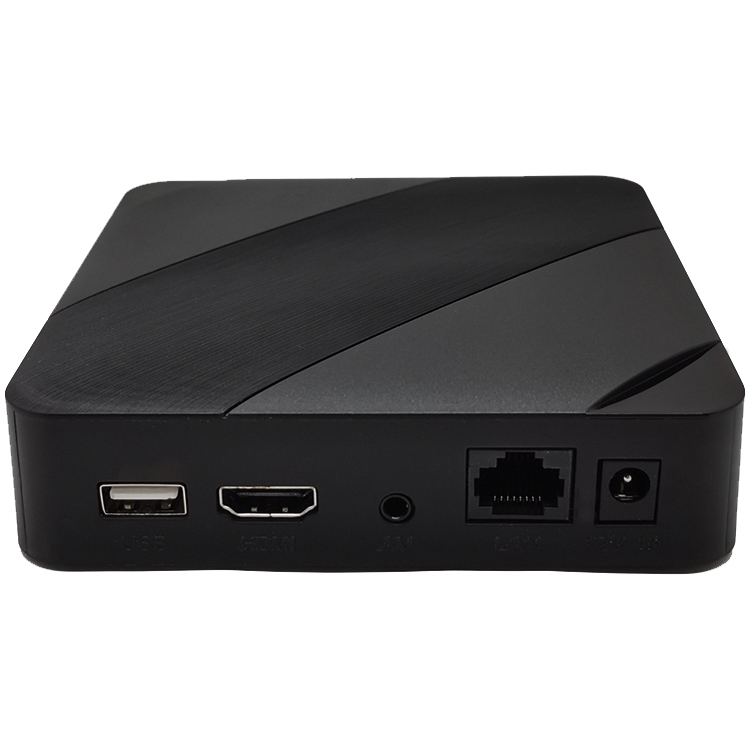

Rear Panel
  • RCA Output: 1*AV Jack 3.5
  • USB2.0: 1
  • HDMI: HDMI1.4
  • Power Adaptor Socket: 12V 1A
  • LAN Port: 10M/100M Ethernet/RJ-45
Software Customization Features
Boot logo customization (1280x720.jpg)
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 2
Home Menu customization (LiveTV and VOD App can be customized)
STB can play directly the channel after power on by request.
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 3
Setup Menu Features
  • STALKERX API: Support login with stalker account
  • XTREAM CODES API: Support login with xtream account
  • URL ONLINE M3U: Support online download M3U playlist from your server or USB
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 4
Application Support
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 5
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 6
Support multi-account memory
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 7
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 8
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 9
Support multi-account memory
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 10
Customized IPTV Features
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 11
Support online download M3U/XML playlist, STB can preset the default Server URL by request.
STB can update channel list automatically.
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 12
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 13
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 14
Support to control the device service through MAC ID.
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 15
Support USB import channels with XML and M3U format.
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 16
Support UDP import channels
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 17
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 18
Linux IPTV Set Top Box with HLS UDP RTMP Remote Update 19
